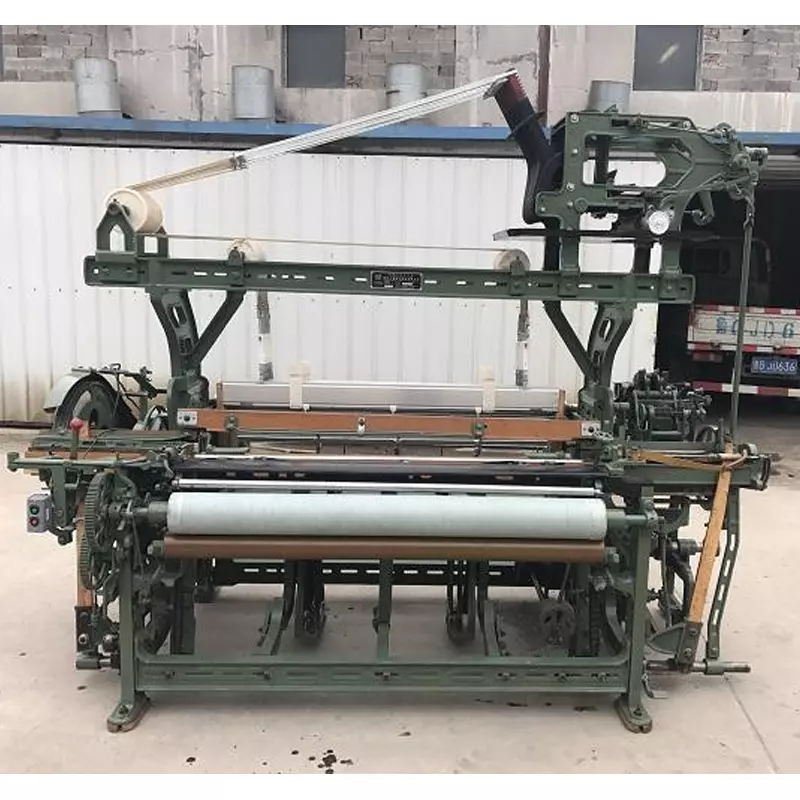

automatic changing shuttle
tappet shedding motion
seven gear take-up
outside let-off
SPECIFICATION:
1、Type---Under picking type, multi-shuttle-box, automatic stop, manual weft replenishing
2、Hand type: RH and L·H
3、reed space—56" 60” 63" 75"
4、Max.space of warp: 130cm(56") ,140cm(60”),147cm(63"), 177cm(75")
5、crank shaft speed : 125-140rpm
6、Angle between reed and shuttle plate:86°36¹
7、Device system: clutch driven by motor with triangle type belt.
8、Motor model: model Fo-53-6N: 0.8Kw .960r/min.
9、Shuttle box type: 1×4 multi- box.
10、Shuttle box movement:air cylinder or servo motor
11、Shuttle box switch: computer
12、Save steel board: utilize veering of aperture or imperforate control panel on one side, control 16, 32 or 64 shuttles by the other side.
13、Shedding device: tappet shedding or dobby shedding or jacquard
14、Beating-up motion: warp yarn protecting readsliding beating-up
15、Let off motion : warp feeding automatically positively or semi-positively, swelling strength-compensated warp feeding.
16、Rolling type: seven teeth interval rolling, max rolling dia: 300mm
17、Weft stop motin side fork or weft feeler without weft,machine stop
