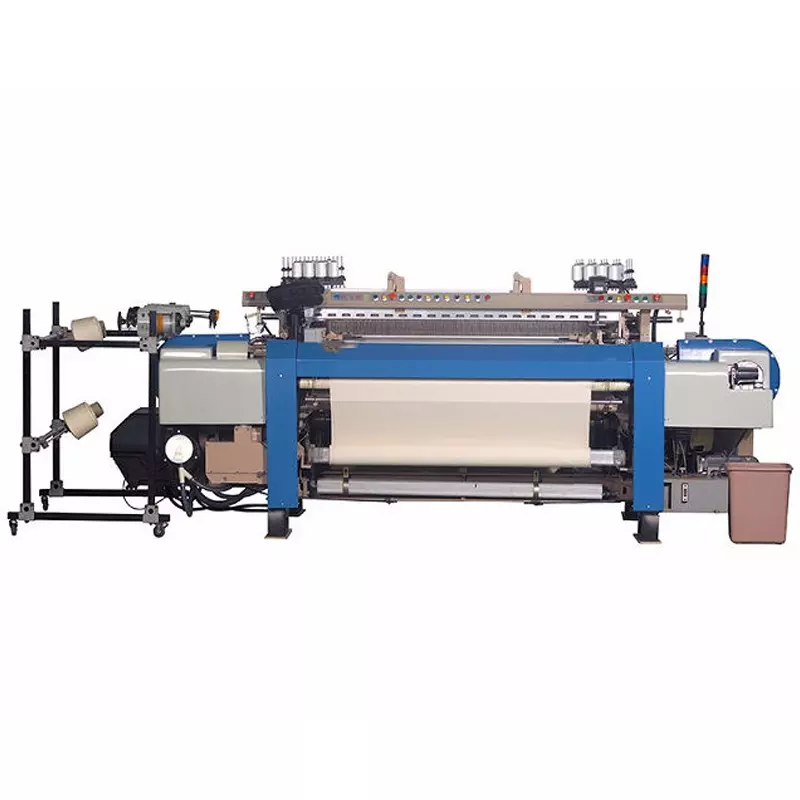

JR788 high speed rapier loom
Main drive: The main motor 7.5KW adopts frequency converter for speed regulation.
Weft insertion: the use of a space four-bar linkage mechanism, forward and slow reverse search, precise weft insertion action, which is beneficial to reduce driving marks.
Shedding: Electronic dobby shedding, with up to 20 heald frames.
Electrical control system: Adopt 32 -bit CPU central processing unit, frequency converter and three-phase asynchronous motor.
Lubrication cooling system: Aluminum alloy oil tank, circulating spray lubrication, oil temperature sensor is added, and water cooling is forced to achieve the purpose of cooling oil temperature.
Color selection : stepping motor controls the rotary high-speed electronic weft selector, the color selection mechanism can match up to 16 colors.
Beat-up : Double-sided conjugate cam, separated sley.
Let-off : Servo electronic let-off, digital closed-loop control of constant tension weaving, small tension fluctuation from full shaft to empty shaft
Coiling : Servo electronic coiling can realize variable weft density weaving.
Heald frame connection : It is very convenient to adjust the height of the heald frame and change varieties.
main specifications:
|
Reed space
|
190cm , 210cm , 230cm , 250cm , 260cm , 280cm , 300cm , 320cm , 340 cm , 360cm
Width change (including scrap edges): +6 ~ -70cm
|
|
speed
|
220-420 revolutions / min (depending on the configuration given width)
|
|
Control system
|
Microcomputer system, touching screen
|
|
Shedding
|
China electronic dobby, 12 shafts
|
|
weft selector
|
4-colour electronic weft selector
|
|
Weft insertion
|
Spatial 4-link insertion, with guiding hook system
|
|
Let-off
|
Electronic let off, with single beam
|
|
Take-up
|
Electronic take up, with inbuilt cloth roller
|
|
Pick-finding
|
Automatic pick finding system
|
|
Selvage system
|
Independent electronic leno, mechanical cutter
|
|
Lubrication
|
Bath oil & pressure oil
|
|
Main motor
|
Frequency converter drive, practical speed 380rpm~440rpm
|
